Caliper Guides & Seals Repair Kit
| Brand: | KNORR TYPE |
| Model: | SL7… Series,SM7… Series |
| Product Code | 14289 |
| KNORR TYPE : | K108002K50,K108002K51,K108002K62,K108002K64,K108002K69 |
| SF : | 3 434 3824 00 |
| SCHMITZ : | 1227598 |
Description

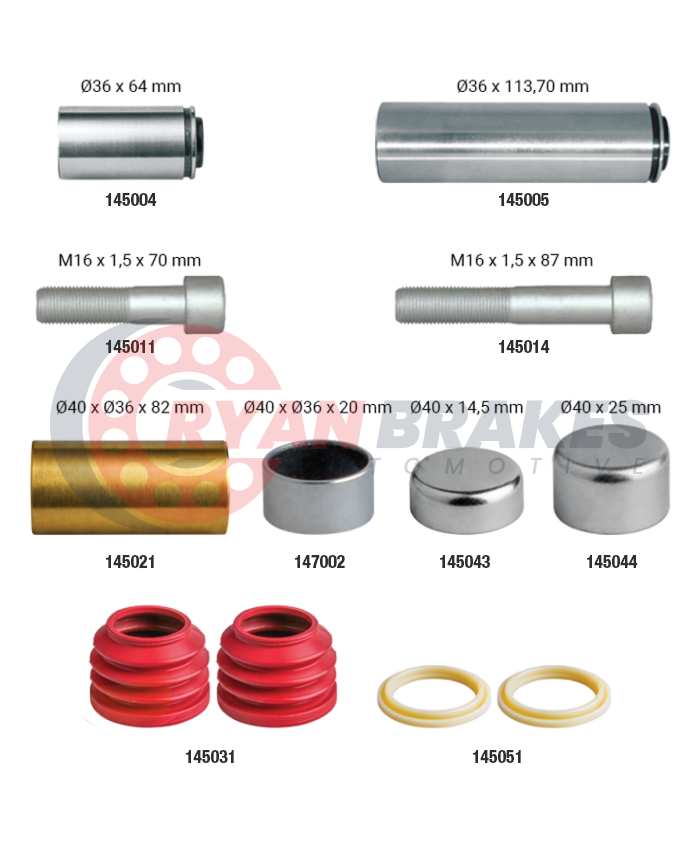

| Quantity | Product | Product Code |
| 1 | Guide Pin – Ø36 x 64 mm | 145004 |
| 1 | Guide Pin – Ø36 x 113,70 mm | 145005 |
| 1 | Bolt – M16 x 1,5 x 80 mm | 145011 |
| 1 | Bolt – M16 x 1,5 x 87 mm | 145014 |
| 1 | Bush – Ø40 x 36 x 82 mm | 145021 |
| 1 | Bush – Ø40 x Ø36 x 20 mm | 147002 |
| 1 | Steel Cap – Ø40 x 14,5 mm | 145043 |
| 1 | Steel Cap – Ø40 x 25 mm | 145044 |
| 2 | Pin Boot | 145031 |
| 2 | Pin Boot Ring | 145051 |
Additional information
| Product Code: | 14289 |
|---|---|
| Categorie |
